27.1. Principle of QR Barcodes

Note

This module is only available in the pro-version of the library.

QR is currently the highest capacity general two-dimensional matrix symbology available (up to ~7Kb numeric data can be encoded) and it is designed to encode the full 256 byte ASCII character set as well as the Kanji (Shift-JIS character set). QR code belongs to the modern 2 dimensional codes that is designed for both high capacity as well as to be efficient for scanner equipment to process and this is also the reason for its name - Quick Response code.

An advantage with QR code is also there relatively small size for a given amount of information

The QR code is available in 40 different square sizes each with a user selectable error correction level in four steps (referred to as error correction level L,M,Q and H). With the highest level of error correction used up to ~30% of the codewords can be damaged and still be restored.

QR code is extensively used in some Asian countries and is finding more an more usage to transfer medium sized information onto mobile phones where the QR codes are interpretated by first taking a photo of the barcode with the mobile and then running a QR decoding program on the cell phone. This has currently become the most expansive usage of QR codes and some mobile manufactures are providing software to aid in interpreting QR codes for free.

Note

QR codes are also finding there way into public information sharing. For example in Texas in US some cities are using QR codes to display public information.

Note

QR Codes can be freely used without royalties. QR Codes are copyrighted by:

DENSO WAVE NCORPORATED.

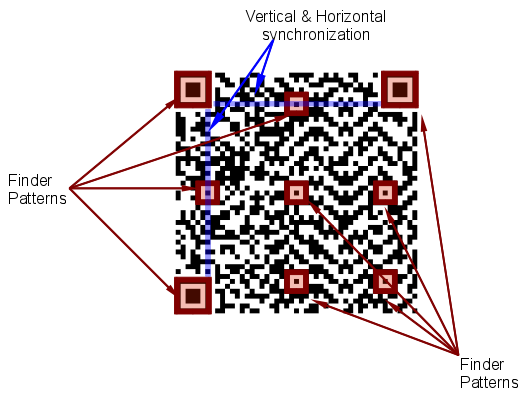

In Figure 27.1 we have amended a large version of a basic QR code. In this figure the special finding patterns and timing patterns have been highlighted in red and blue.

Figure 27.1. QR Code high level structure

QR Code high level structure

The images below shows some real-life creative use of QR barcodes.

Figure 27.2. Creative usage of QR Barcodes

Creative usage of QR BarcodesCreative usage of QR BarcodesCreative usage of QR Barcodes


27.1.1. Summary of library features

  • Output format

    1. Image format

    2. Postscript and encapsulated postscript

    3. ASCII

  • Encodation formats

    1. Numeric

    2. Alphanumeric

    3. Binary

  • Supports all specified symbol sizes

  • Supports both auto and user selectable encodation

  • Supports both auto and user selectable symbol size

  • Supports user specified module size

  • Supports custom color specification (foreground, background)

  • Symbols can be written directly to a file or sent back as an image to the browser

27.1.2. Limitation in the JpGraph QR implementation

This implementation is a faithful implementation of the ISO/IEC 18004E International Standard with one important exception. Version 1.0 does not support the encoding of 2 byte Shift-JIS character set. This means that two byte Kanji can only be encoded using binary data format which is less efficient than the native Kanji encoding.

Caution

The computational complexity of the encodation process makes QR code generation slightly slower than both PDF417 and Datamatrix. The technical reason for most of the time is the final necessary evaluation of a bitmap mask which is chosen to give as close to 50% mix of black and white areas in the code as possible. Unfortunately this evaluation take time proportional to the square of the size of the matrix. This time can be noticeable when using "large" symbol sizes. There are existing QR code libraries that cheat on this final step and just randomly selects a bit mask to avoid this computational intensive evaluation. This is also the cause for the visual difference between this libraries final result and some other.

In this case we claim that this library implements the proper standard much more faithfully than some other libraries that exists.

27.1.3. QR Standard

The QR code standard is fully described in the ISO/IEC 18004E International Standard and is available for purchase from the ISO Standard Organization. for a nominal fee.

27.1.4. Structure and capacity of QR barcodes

All QR barcode have square layout made up of equal spaced square modules. Depending on the size of the QR code a certain number of finder patterns are included in the code to aid in scanner decoding. The standard specifies 40 versions (sizes) of the QR code from the smallest 21x21 up to 177x177 modules in size.

Examples of two basic QR codes are shown in Figure 27.3 and Figure 27.4

Figure 27.3. A small sized QR Code (version=2)

A small sized QR Code (version=2)

Figure 27.4. A medium sized QR code (version=13)

A medium sized QR code (version=13)

Depending on the actual data there are several compaction schema that can be used in order to achieve the greatest possible compression. The standard specifies four different principal schema, Numeric, Alphanumeric, Binary and Kanji.

Depending on the application the user of the library may chose to either select a fixed encodation mode or let the library automatically chose the most efficient encodation method. It is usually best to let the library automatically select a combination of encodation schema that will give the smallest possible symbol size.

The maximum capacity for QR codes dependent on the encodation schema (using the lowest possible error correction overhead) are given in Table 27.1

Table 27.1. QR Data capacity

Encoding modeMaximum capacity
Numeric7089 digits (Datamatrix=3116)
Alphanumeric4296 characters (Datamatrix=2335)
Binary2953 (Datamatrix=1555)
Kanji1817 (Datamatrix NA)


The exact number of characters that can fit in a QR symbol depends on the actual encoding (or compaction) schema used. In short this is used to more efficiently encode ASCII characters to fit more data into a fixed number of bytes. For example if only numeric data is to be encoded then instead of using one byte to hold each digit three digits is stored in 10 bits. Which gives the equivalent capacity that 12 digits takes only 5 bytes to encode.

To encode data into a QR symbol the following principal steps are taken.

  1. The input string (which can be any ASCII values between 0-255) is encoded using the selected encoding or encodings (it is possible to switch encoding mid-way through the string). The primary purpose of the encoding is to compress the data into a much shorter form.

  2. If needed the data is padded to fill up to the capacity of the selected symbol size.

  3. Once the string has been encoded (and possible padded) a number of error correcting code words are added so that the data can be recovered even if part of the printed symbol have been destroyed (perhaps a corner has been teared off).

  4. Finally the encoded data and the error correcting words are placed in the symbol according to an algorithm specified in the standard. This is done by placing each bit of every data byte in a specific position in the qr matrix symbol.

The above explanation is by necessity simplified and for those interested into the specific details we refer to the official standard. It is also possible to review the code itself to understand the details.

27.1.5. QR versions and symbol size

As mentioned in the previous section the QR standard specifies 40 different sizes of the QR code and the maximum data capacity will also vary depending on the size. Table 27.2 shows the defined sizes and for each size specifies the possible Error correction levels and the maximum data capacity depending on the compaction schema used.

By default the symbol size will be chosen as the smallest possible. However some application require that usage of a fixed size symbol. The symbol size is a parameter of the encodation schema and is adjusted in the creation of the QREncoder.

Table 27.2. Maximum data capacity for the different symbol sizes in the QR-code.
Version Modules ECC Level Data bits Numeric Alphanumeric Binary Kanji
1 21x21 L 152 41 25 17 10
M 128 34 20 14 8
Q 104 27 16 11 7
H 72 17 10 7 4
2 25x25 L 272 77 47 32 20
M 224 63 38 26 16
Q 176 48 29 20 12
H 128 34 20 14 8
3 29x29 L 440 127 77 53 32
M 352 101 61 42 26
Q 272 77 47 32 20
H 208 58 35 24 15
4 33x33 L 640 187 114 78 48
M 512 149 90 62 38
Q 384 111 67 46 28
H 288 82 50 34 21
5 37x37 L 864 255 154 106 65
M 688 202 122 84 52
Q 496 144 87 60 37
H 368 106 64 44 27
6 41x41 L 1,088 322 195 134 82
M 864 255 154 106 65
Q 608 178 108 74 45
H 480 139 84 58 36
7 45x45 L 1,248 370 224 154 95
M 992 293 178 122 75
Q 704 207 125 86 53
H 528 154 93 64 39
8 49x49 L 1,552 461 279 192 118
M 1,232 365 221 152 93
Q 880 259 157 108 66
H 688 202 122 84 52
9 53x53 L 1,856 552 335 230 141
M 1,456 432 262 180 111
Q 1,056 312 189 130 80
H 800 235 143 98 60
10 57x57 L 2,192 652 395 271 167
M 1,728 513 311 213 131
Q 1,232 364 221 151 93
H 976 288 174 119 74
11 61x61 L 2,592 772 468 321 198
M 2,032 604 366 251 155
Q 1,440 427 259 177 109
H 1,120 331 200 137 85
12 65x65 L 2,960 883 535 367 226
M 2,320 691 419 287 177
Q 1,648 489 296 203 125
H 1,264 374 227 155 96
13 69x69 L 3,424 1,022 619 425 262
M 2,672 796 483 331 204
Q 1,952 580 352 241 149
H 1,440 427 259 177 109
14 73x73 L 3,688 1,101 667 458 282
M 2,920 871 528 362 223
Q 2,088 621 376 258 159
H 1,576 468 283 194 120
15 77x77 L 4,184 1,250 758 520 320
M 3,320 991 600 412 254
Q 2,360 703 426 292 180
H 1,784 530 321 220 136
16 81x81 L 4,712 1,408 854 586 361
M 3,624 1,082 656 450 277
Q 2,600 775 470 322 198
H 2,024 602 365 250 154
17 85x85 L 5,176 1,548 938 644 397
M 4,056 1,212 734 504 310
Q 2,936 876 531 364 224
H 2,264 674 408 280 173
18 89x89 L 5,768 1,725 1,046 718 442
M 4,504 1,346 816 560 345
Q 3,176 948 574 394 243
H 2,504 746 452 310 191
19 93x93 L 6,360 1,903 1,153 792 488
M 5,016 1,500 909 624 384
Q 3,560 1,063 644 442 272
H 2,728 813 493 338 208
20 97x97 L 6,888 2,061 1,249 858 528
M 5,352 1,600 970 666 410
Q 3,880 1,159 702 482 297
H 3,080 919 557 382 235
21 101x101 L 7,456 2,232 1,352 929 572
M 5,712 1,708 1,035 711 438
Q 4,096 1,224 742 509 314
H 3,248 969 587 403 248
22 105x105 L 8,048 2,409 1,460 1,003 618
M 6,256 1,872 1,134 779 480
Q 4,544 1,358 823 565 348
H 3,536 1,056 640 439 270
23 109x109 L 8,752 2,620 1,588 1,091 672
M 6,880 2,059 1,248 857 528
Q 4,912 1,468 890 611 376
H 3,712 1,108 672 461 284
24 113x113 L 9,392 2,812 1,704 1,171 721
M 7,312 2,188 1,326 911 561
Q 5,312 1,588 963 661 407
H 4,112 1,228 744 511 315
25 117x117 L 10,208 3,057 1,853 1,273 784
M 8,000 2,395 1,451 997 614
Q 5,744 1,718 1,041 715 440
H 4,304 1,286 779 535 330
26 121x121 L 10,960 3,283 1,990 1,367 842
M 8,496 2,544 1,542 1,059 652
Q 6,032 1,804 1,094 751 462
H 4,768 1,425 864 593 365
27 125x125 L 11,744 3,514 2,132 1,465 902
M 9,024 2,701 1,637 1,125 692
Q 6,464 1,933 1,172 805 496
H 5,024 1,501 910 625 385
28 129x129 L 12,248 3,669 2,223 1,528 940
M 9,544 2,857 1,732 1,190 732
Q 6,968 2,085 1,263 868 534
H 5,288 1,581 958 658 405
29 133x133 L 13,048 3,909 2,369 1,628 1,002
M 10,136 3,035 1,839 1,264 778
Q 7,288 2,181 1,322 908 559
H 5,608 1,677 1,016 698 430
30 137x137 L 13,880 4,158 2,520 1,732 1,066
M 10,984 3,289 1,994 1,370 843
Q 7,880 2,358 1,429 982 604
H 5,960 1,782 1,080 742 457
31 141x141 L 14,744 4,417 2,677 1,840 1132
M 11,640 3,486 2,113 1,452 894
Q 8,264 2,473 1,499 1,030 634
H 6,344 1,897 1,150 790 486
32 145x145 L 15,640 4,686 2,840 1,952 1,201
M 12,328 3,693 2,238 1,538 947
Q 8,920 2,670 1,618 1,112 684
H 6,760 2,022 1,226 842 518
33 149x149 L 16,568 4,965 3,009 2,068 1,273
M 13,048 3,909 2,369 1,628 1,002
Q 9,368 2,805 1,700 1,168 719
H 7,208 2,157 1,307 898 553
34 153x153 L 17,528 5,253 3,183 2,188 1,347
M 13,800 4,134 2,506 1,722 1,060
Q 9,848 2,949 1,787 1,228 756
H 7,688 2,301 1,394 958 590
35 157x157 L 18,448 5,529 3,351 2,303 1,417
M 14,496 4,343 2,632 1,809 1,113
Q 10,288 3,081 1,867 1,283 790
H 7,888 2,361 1,431 983 605
36 161x161 L 19,472 5,836 3,537 2,431 1,496
M 15,312 4,588 2,780 1,911 1,176
Q 10,832 3,244 1,966 1,351 832
H 8,432 2,524 1,530 1,051 647
37 165x165 L 20,528 6,153 3,729 2,563 1,577
M 15,936 4,775 2,894 1,989 1,224
Q 11,408 3,417 2,071 1,423 876
H 8,768 2,625 1,591 1,093 673
38 169x169 L 21,616 6,479 3,927 2,699 1,661
M 16,816 5,039 3,054 2,099 1,292
Q 12,016 3,599 2,181 1,499 923
H 9,136 2,735 1,658 1,139 701
39 173x173 L 22,496 6,743 4,087 2,809 1,729
M 17,728 5,313 3,220 2,213 1,362
Q 12,656 3,791 2,298 1,579 972
H 9,776 2,927 1,774 1,219 750
40 177x177 L 23,648 7,089 4,296 2,953 1,817
M 18,672 5,596 3,391 2,331 1,435
Q 13,328 3,993 2,420 1,663 1,024
H 10,208 3,057 1,852 1,273 784

27.1.6. Error correction level

As shown in Table 27.2 the QR standard specifies four different error correction levels. In the library the error correction can either be set to be chosen automatically or specified manually. The properties of the available error correction levels are given in Table 27.3. The "Error correction capacity" column specifies how large percentage of the codewords that can be destroyed and the code still being decoded.

Table 27.3. QR Error correction levels

Error levelSymbolic constantError correction capacity
LQRCapacity::ErrL5 %
MQRCapacity::ErrM15 %
QQRCapacity::ErrQ25 %
HQRCapacity::ErrH30 %


27.1.7. Comparing the visual output with other QR-generating software

It is possible that the JpGraph library gives a visually different result than some other available QR encoders. As a matter of fact many QR encoders gives a different visual result from the same input. This does not mean that one QR encoder is more correct than any other. This is a consequence of interpretation of the standard in a way that (without going into technical details) does not in any way affect the decoding of the barcode. It only affects the visual appearance.

Note

Part of the reason is that the original ISO/IEC 18004E standard is not consistent between its theoretical description and the examples that is given in the standard. For those interested in a more technically explanation of these visual issues we refer to

which gives a detailed analysis and explanation of these issues.
