14.7. Understanding and using different scales on the axis

14.7.1. Different scale types

The scale of the graph axis are controlled by either

  • Graph::SetScale() which can take on of the following strings as argument

    "intint", "intlin", "intlog", "linint", "linlin", "linlog", "logint", "loglin", "loglog", "textint", "textlin", "textlog", "datint","datlin","datlog"

    The first half of the string argument specifies the x-axis scale and the second half of the string specifies the y-axis scale. When an y2 or multiple y-scales (see ??

Numerical scale types

The scale for a basic graph is specified with a call to Graph::SetScale() and supplying the wanted scales for the x- and y-axis. For numeric data there are three basic scales available

  1. Integer scale "int"

  2. Linear scale (a.k.a decimal labels)

  3. Logarithmic scales

The choice of scale will affect how the autoscaling is done and how the labels will look. Choosing an integer scale will, as the name suggests, restrict the labels to integer and integer interval between the scale step (at each tick mark). The linear scale has no such restriction and can be considered a superset of the integer scale (even though the implementation is done in rather the opposite way). Labels for linear scale can have fraction intervals and will shows the decimal values by default in the labels. Finally the logarithmic scale will create a deca - logarithmic scale.

The style of the labels can be formatted in two ways

  1. By specifying a format string (in printf() format) to be used by calling the method Axis::SetLabelFormatString() The format string is interpretated according to the second parameter. If that parameter is "true" then the format string will be assumed to give a date format as expected by the date() function. This is an easy way to translate timestamp values to proper time/date labels.

  2. By specifying a callback function. The callback function/method will be called with the label as the only argument and must return the label that should be printed Axis::SetLabelFormatCallback()

    For example. An easy way to get 1000' separators for numbers is to add the PHP function number_format() as callback to the wanted y-axis as in

    1

    $graph->yaxis->SetLabelFormatCallback('number_format');

    Another example of using a callback function is to "revert" the y-axis. By default the y-axis grows from the bottom and up. But what if we want the y-axis to grow from top to bottom, i.e. the 0-value should be at the top and the largest value at the bottom?

    The way to accomplish this is to use a negative y-scale which the plot is made against (by negating all the data values in the data serie). This would then give the appearance that we want apart from the act that all labels will have a minus sign in front of them. By creating a callback function that just returns the absolute value of the label we can adjust that and we get the effect that we want. Figure 14.19 shows an example of a "dive-curve" where the sea-level is at the top of the graph to give better connection to this particular use-case.

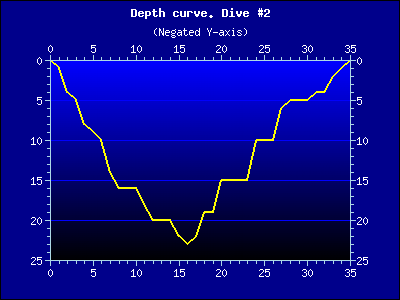

    Figure 14.19. Inverted y-scale to show a dive profile (inyaxisex2.php)

    Inverted y-scale to show a dive profile (inyaxisex2.php)


    Note

    The dive profile in Figure 14.19 is an actual dive of one of the authors dives in the Gulf of Bothnia

Textual scale types

There is only one pure textual scale type

  1. Text scale ("text")

This type of scale is exclusively used for the x-axis.

The primary use of this scale is to label bars in a bar graph. However, as will be shown this can also be used at other occasions to achieve various wanted effects. There is no concept of autoscaling for text scales. Instead the whole purpose of this type of scale is for the user to manually supply the wanted labels in an array using the method Axis::SetTickLabels().

The other key difference for a text scale as compared to the numeric scales is that the labels are positioned in between the tick marks and not directly under them. This is the common practice to label bar graphs and hence this is the way text scale works.

Date scale types

This scale type only has one valid scale

  1. Date scale ("dat")

This specific scale type will assume that the data values are timestamps and will properly format them to give "even" steps (in a time/date sense).

14.7.2. Manual vs automatic scale handling

Normally the scale is determined automatically in the library by analyzing the input data and making sure that a suitable scale is established that fulfill the following criteria:

  1. The full dynamic scope of the data series can be displayed

  2. The step size between major tick marks (tick marks that have a label) is a multiple of either (1, 2, 5, 10 ) * 10 ^n, where the size of 'n' is determined by the dynamic range of the data.

  3. In addition the number of labels is dependent on the size of the graph. A smaller graph will have fewer labels since there is "physically" not enough room to show too many labels.

Note

Internally the auto scaling algorithm has fair amount of intelligence to try to make the scale in the same way a human would so ti. For example the origin has a specially strong attraction meaning that the autoscaling will try hard to make sure 0 is included in the scale as long as it "makes sense".

Usually this works fine in most cases but there are always exception where exact control over the scale is wanted. For example to be able to compare several graphs that might otherwise get different scales. There are two ways of manually adjusting the scales.

  1. Manual min/max values but with the tick marks automatically determined

    In this case the exact min/max value of the scale is submitted to the SetScale() method call to set either (or both) of the x- and y-scale. Since the first two argument after the scale type determines the y min/max and the fourth and fifth argument specifies the x min/max this means that in order to specify the x scale the y scale must have some values. If the y axis should be left alone (i.e. to be autoscaled) then just put the "dummy" values (0,0) as placeholder in the method call. The following examples clarifies this.

    • $graph->SetScale('intlin',0,0,-10,20);

      Y-scale is autoscaled and the x-scale is set to [-10,20]

    • $graph->SetScale('intlin',0,50);

      Automatic x-scale and manual y-scale with range [0,50]

    • $graph->SetScale('intlin','-10,10,-20,20);

      Manual x- and y-scale

  2. Semi automatic (or semi manual)

    This is a away to lock either the min or max value and let the auto scaling algorithm determine a suitable corresponding max and min value. This can be very useful to make sure that for example the 0 value is always includeded even if the minimal value is so high that the autoscaling algorithm have chosen to start at a larger value. These two locked down values are set with the two methods

    • Scale::SetAutoMin()

      Example: $graph->yaxis->scale->SetAutoMin(0); This will lock the y-min to 0

    • Scale::SetAutoMax()

      Example: $graph->xaxis->scale->SetAutoMax(1000); This will lock the x.max to 0

14.7.3. Major and minor ticks

The final step in understanding the scaling is to understand tick marks. There are two types of tick marks, major and minor. Major tick marks are tick marks that have a label associated. Up to now we have assumed that the library adjusts where the tick marks are positioned and the inter spacing between tick marks.

The tick object is available as an instance variable of the scale class which means that you can access and adjust the tick mark properties by accessing:

$Graph::Axis::Scale::ticks

For further fine control of the scale it is possible to manually adjust the major and minor ticks using one of the three methods

  1. Adjusting how dense the auto scaling algorithm should put the tick marks.

    Even when using a fully automatic scaling it is possible to adjust how many tick marks that the algorithm should try to place on the scale. This is controlled with the method

    • Graph::SetTickDensity($aYDensity, $aXDensity)

    The y- and x-scale density can be set to one of the following (symbolic) values

    • TICKD_DENSEk

    • TICKD_NORMAL

    • TICKD_SPARSE

    • TICKD_VERYSPARSE

    By default the density for all scales are set to TICKD_NORMAL

    As a comparison Figure 14.21 is the exact same as Figure 14.20 with the difference that in this figure the density for the y-scale has been set to TICKD_DENSE

    Figure 14.20. Setting tick density to TICKD_DENSE (manscaleex3.php)

    Setting tick density to TICKD_DENSE (manscaleex3.php)


  2. Manually specifying the step size between each minor and major tick.

    This is done using the method

    LinearTicks::Set($aMajStep,$aMinStep=false)

    please note that this is a method of the Tick class which is available as an instance variable in the scale class

    Example: $graph->xaxis->scale->ticks->Set(20,5);

    This type of manual positioning of the tick marks might be useful if the scale has been set to some non-multiples of 1,2,5,10. The following examples will clarify this. In ?? the left graph is what we get after manually specifying the y min/max values to (3,35). In this case the auto scaling algorithm fails to assign "nice" steps to the y-axis so that the tick marks starts and begins at the min/max of the scale. If we manually set the tick distance to be (8,2), i.e. we set the major tick marks 8 units apart and the minor (non-labeled) tick marks 2 steps apart we get the much nicer result as shown in the right graph in ??

    Figure 14.21. Fully automatic not so good scaling (manscaleex2.php)

    Fully automatic not so good scaling (manscaleex2.php)


    Figure 14.22. Manually specified tick distance which gives a much better appearance (manscaleex1.php)

    Manually specified tick distance which gives a much better appearance (manscaleex1.php)


    Caution

    The major tick step must be an even multiple of the minor tick step. If this is not the case the library will automatically adjust the major step size to be the closest multiple of the minor step size.

  3. Specify the exact position for each single tick mark

    This is often used to position only the major tick marks to be able to have labels at very specific points in the graph. One example of how to use this was shown in Figure 8.8 where the tick marks were positioned at factions of π. Another typical example is to place a label at exactly the beginning of a month. Since months have different lengths there is no other way if 100% precision is wanted. An example of this is shown in Figure 14.23

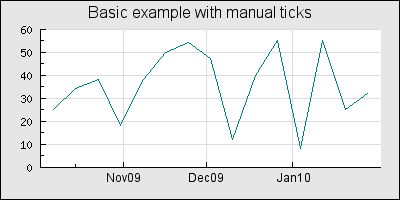

    Figure 14.23. Manually specifying the tick position for each month (manualtickex1.php)

    Manually specifying the tick position for each month (manualtickex1.php)


    Caution

    When the tick position is manually set there should also be a corresponding array of labels to be put at these positions.

  4. Adjusting the size and on what side the tick marks should be drawn

    The side on the axis which has the tick marks is adjusted with a call to

    • Axis::SetTickSide($aTickSide)

      Possible options for the tick side are

      • SIDE_UP

      • SIDE_DOWN

      • SIDE_LEFT

      • SIDE_RIGHT

    For example, the following lines added to a script would change side of the labels and tick marks for the x-axis.

    1
    2
    3
    4

    <?php
    $graph->xaxis->SetLabelPos( SIDE_UP );
    $graph->xaxis->SetTickSide( SIDE_DOWN );
    ?>

    This technique can for example be used to put the x-axis at the top of the graph as the following example shows.

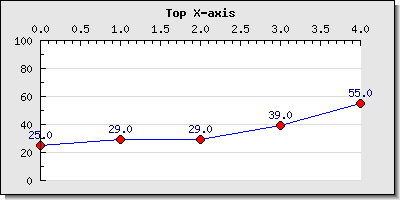

    Figure 14.24. Adjusting the side which have the tick marks and position the x-axis at the top (topxaxisex1.php)

    Adjusting the side which have the tick marks and position the x-axis at the top (topxaxisex1.php)


In passing we mention that there are additional ways to adjust the look and feel of the tick marks which is discussed in the next section (Section 14.8) in detail.
